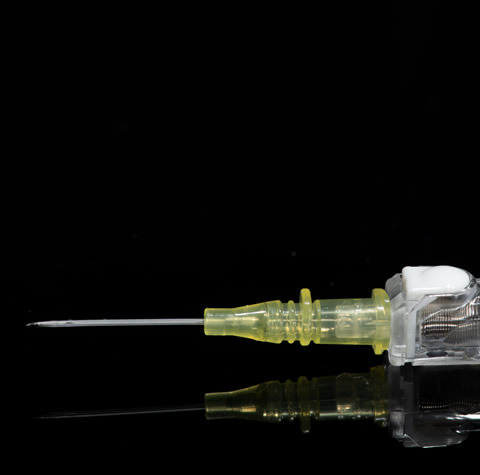

The Unsung Hero of The Emergency Department: The 24G IV Catheter

Are you selecting the correct size IV catheter?

Article explains the multiple uses for a 24G IV catheter that most nurses do not think about in an emergency room setting.

Published

Are you selecting the correct size IV catheter?

Nurses are taught that critical care patients (gunshots to the chest or abdomen, car wrecks, etc.) need two large-bore IV catheters. This is a fact, but not all patients coming to the emergency department are critical care patients. What about someone who has poor venous access such as the elderly, cancer patients, or IV drug users that just need pain medications, some fluid, or IV antibiotics before discharge?

Selecting the right IV catheter for your patient helps not only the patient but also the nurse. Imagine the discomfort of being stuck multiple times and still not having IV access. The time the nurse has spent attempting to get a large-bore IV was wasted and has put the nurse behind in their other duties, not to mention aggravating the patient and the patient’s family.

But how do you determine the correct IV catheter size to use? It’s a combination of:

  • patient assessment
  • medications ordered
  • admission status

IV catheter size determination begins with understanding the IV catheter flow rate of each gauge. The catheter packaging will specify the maximum flow rate for that specific catheter. Flow rate times 60 minutes determines how much volume a catheter can safely infuse in one hour.

What will surprise most nurses is that the lowly 24G catheter can fill almost all your infusion needs. Surprising? Let’s calculate how much fluid a 24G can infuse in one hour.

A 24G’s flow rate is 20 ml/min. Take that flow rate and multiply it by 60 minutes and you get 1200 ml/hour. Yes, that is correct! A 24G can infuse 1200 ml of fluid per hour. Most pumps limit out at 999 ml per hour.

With that much flow rate, you may not have to attempt a 22G, 20G, or 18G for a patient. A 24G is perfect for antibiotic or fluid infusions. Not to mention, the patient is satisfied because they only got stuck one time with the “baby” needle.

Can you draw blood through a 24G? You absolutely can. You might need a 3ml syringe to easily pull the blood, but a good 24G catheter will draw all the blood you need. I am not saying all patients have veins that will allow a 24G to draw blood. That is not true at all, but most do if the IV is good.

Here are a few situations where a 24G catheter really shines but is not usually thought about.

Ischemic Stroke

One specific situation where a 24G truly is an unsung hero is an ischemic stroke that requires rTPA but you can’t get a large-bore IV on the patient. Every minute counts with a stroke patient requiring rTPA.  If you delay giving rTPA because you are trying for a large-bore catheter, your patient is losing brain tissue. Although not optimal, you can give rTPA through a 24G. The maximum flow rate for giving rTPA is 81 ml/hr. This flow rate is well within a 24G’s capacity. Lore has it that you cannot attempt further IV insertions on an rTPA recipient after giving rTPA. This is a guideline that should be followed as closely as you can, but you can attempt a better IV once rTPA is administered given a doctor’s order. Don’t waste time that causes a person to be permanently disabled because you were attempting to get large-bore IV access when small-bore access will do.

Super Ventricular Tachycardia (SVT)

One solution for SVT is administering adenosine rapidly. Granted, in this case, a large-bore IV is optimal-preferably placed in the antecubital. But you can administer adenosine via a 24G if that is all the access you can get. By far, it is not optimal, but you can do it.

IV Drug Users

IV drug users’ veins are notoriously difficult to cannulate. The medications they need for pain, fluid, or antibiotics can all be given via a 24G IV. Yes, a 22G or larger is better if they are going to be admitted, but if you can only get a 24G, administer the medications first and obtain an order for PICC or midline access second.

Elderly Patients

Elderly patients’ vein walls are fragile. Attempting a larger bore IV on these patients is almost always a recipe for disaster. Not all, but most have poor veins. First, you do not want to cause the patient any undue pain or anxiety.  Second, the family is in the room, and they are watching you “torturing” their loved one. Granted, we all know you are not torturing the patient, but to a layperson, it might seem that way. It is also a perfect complaint opportunity to be lodged against you with your board of nursing.

What is the solution to these difficult IV situations?

Ultrasound-guided IVs. Learn to use the ultrasound machine for difficult IV cannulations and your problems with obtaining IV access nearly go away. Refer to your hospital’s policy on placing ultrasound-guided IVs.

Now, a 24G IV catheter is not a panacea for all your IV cannulation needs, but it covers many situations that most nurses do not think about. A 22G is probably the best for patients being admitted to the hospital with poor venous access. A 20G allows you to give an adult patient blood, while an 18G allows you to fluid resuscitate a patient quickly. No one IV catheter fits all patient requirements, but the lowly 24G shouldn’t be ignored.


A fifteen-year nurse that has worked in the emergency room and the ICU. I am in the process of writing my second nurse related book on what to do in a STEMI.

3 Articles   17 Posts

Share this post


amoLucia

7,735 Posts

Specializes in retired LTC.

LUV   LUV   LUV  this article! Some very good basic info being presented on a fundamental topic apropos to most current clinical practitioners in many clinical areas.

And the article is easy to read!

You do need to comment that obese pts are freq hard sticks too.

TY and welcome to AN.

HiddenAngels

790 Posts

Has 9 years experience.

The Unsung Hero. 💘love that!
Great article but it needs to be said that this is a temporary fix. Most times this size IVs blows/leaks fairly quickly in my experience.

I don't recall ever using a 24g for anything but peds. I'd often default to a 20g for easier access or to spare veins but if there was even a remote possibility of a CT w/ contrast I wouldn't go to even a 22g. CT would just refuse to use a small bore access.

Damon McGill, BSN, RN

3 Articles; 17 Posts

Specializes in Emergency Room and ICU. Has 15 years experience.

Agreed, CT will not use a 24G. Many patients just need pain meds. I had the CNO’s mom one night. I put in a 24G and gave her 4mg of morphine and 4mg of Zofran and sent her home. Thus, the legend of the 24G began.

Yeh, they wouldn't even use a 20 for a chest study w/ contrast.



HiddenAngels

790 Posts

Has 9 years experience.

LOL! And don’t even try to give shift change and report off that the patient has a 24!  The eye rolls and burning stares LOL!

offlabel

1,467 Posts

It isn't the size of the catheter, per se, it's the quality of vessel that people choose to cannulate with such a small IV catheter. They're friable, thin walled and very fragile. IOW's they blow very easily. If you're reduced to resorting to a 24 ga IV catheter, it is understood that infiltration can occur at any time. If you need an IV in a pinch for about 10-15 reliable minutes while you u/s in a real IV, then have at it. Don't put in a 24 ga catheter and decide you 'have an IV'.

canoehead, BSN, RN

6,837 Posts

Specializes in ER. Has 30 years experience.

I’ve given blood with a 24 G, they do it all the time in NICU, and these RBCs are the same size for adults.


I do have an issue with 1200ml/h with a 24G. Anytime I get up to 500ml/h the 24s have so much pressure to go that fast, they push themselves backwards out of the vein. I haven’t been successful at that rate for more than thirty minutes.

Damon McGill, BSN, RN

3 Articles; 17 Posts

Specializes in Emergency Room and ICU. Has 15 years experience.

1200 ml/hr is the theoretical maximum the catheter can take. That said, I have done 999 ml/hr many times on DKA/drug patients that had no veins we could find at the time.

Asdf

19 Posts

Specializes in Emergency. Has 4 years experience.

Nothing wrong with a 24 if that all you can get.  Problem I have with them is theyre too flexible/soft. Sometimes it’s all you can do just to get through someone’s skin, anyone else have  this problem?

Damon McGill, BSN, RN

3 Articles; 17 Posts

Specializes in Emergency Room and ICU. Has 15 years experience.

In the end, with difficult IVs the ultrasound machine is the way to go to get a solid IV, but if you only have to give pain meds to a patient, a 24G is wonderful, but they are soft and won't last long.
